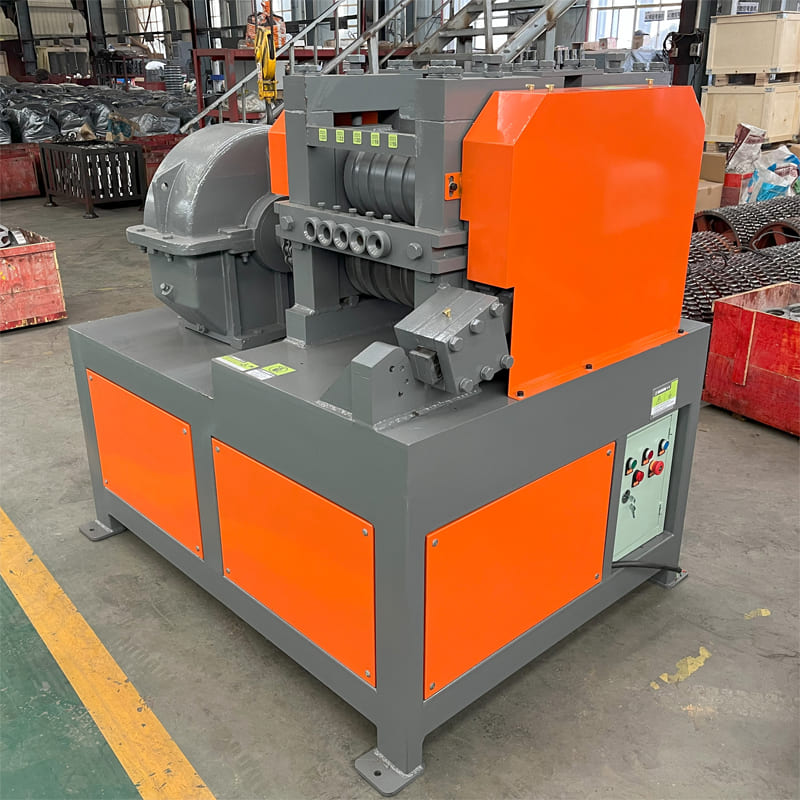

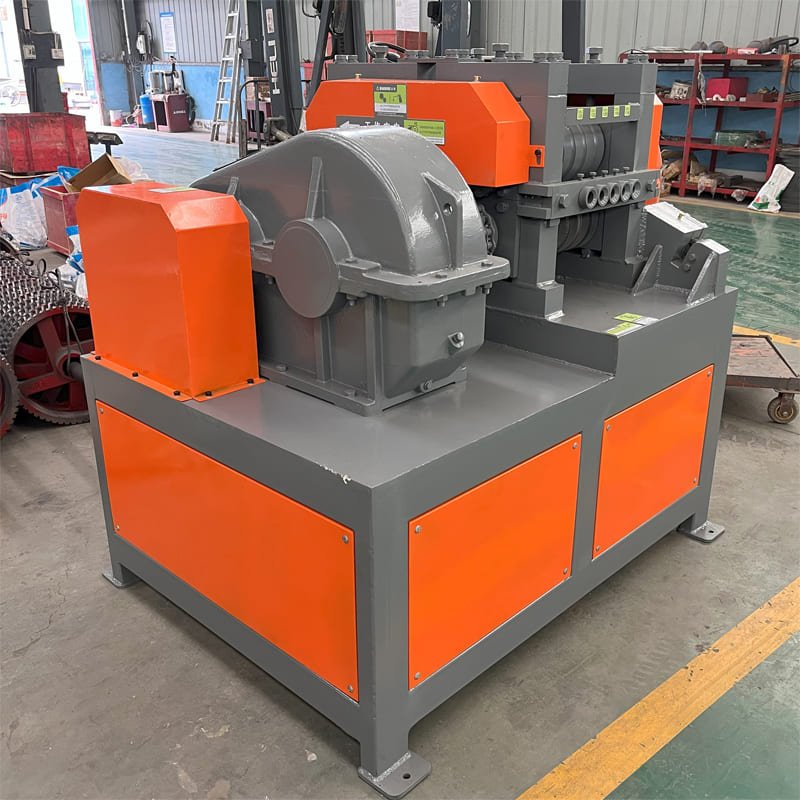

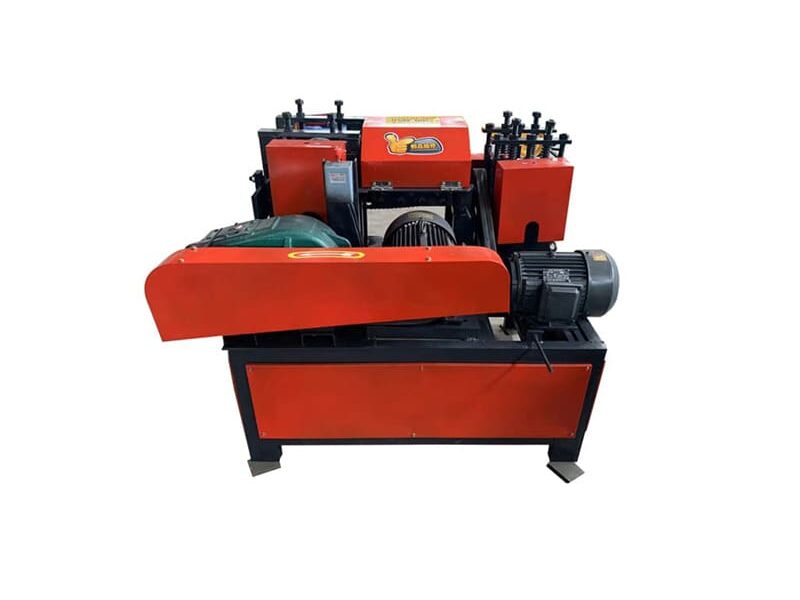

Scrap bar straightening machine also known as the waste steel bar straightening machine, is a versatile piece of equipment specifically designed to recycle and straighten scrap steel bars. It is highly effective at processing bent, discarded, and waste steel bars, as well as steel bar heads. The machine can handle a wide range of steel bar sizes, from 6mm to 25mm in diameter. It’s driven by a motor and a gear reducer, providing fast adjustment, high efficiency, and reliable performance. This ensures smooth operation without jamming or damage to the machine.

Key Features:

1. High-Speed Straightening
   The scrap steel bar straightening machine quickly straightens steel bars, leaving their surface smooth and free from visible scratches. It ensures excellent straightness, making the bars ideal for reuse and reprocessing in construction projects.
2. Cutting Capability
   The machine is equipped with a cutting blade that can easily handle large-angle bends in steel bars, providing additional flexibility during the straightening and processing stages.
3. Multi-Functional Design
   Beyond straightening, the machine can perform multiple operations, such as elongation and rust removal. This versatility enhances the overall quality of the processed steel bars, making them more suitable for various construction needs.

How It Works:

The scrap steel bar straightening machine operates using a high-speed rotating straightening cylinder. The motor powers the straightening cylinder, which not only straightens the bars but also removes rust through the straightening die. Additionally, the machine features a belt drive system that transfers power to two conveying rollers. These rollers pull the steel bars forward, while a crank wheel moves the hammer head up and down to cut any bent sections of the bars. The entire process is efficient, precise, and easy to control.

Application:

Scrap bar straightening machine is widely used in various construction projects, including highways, bridges, and the production of concrete components and prefabricated boards. It is particularly effective at straightening and cutting scrap steel bars, making it an essential tool for recycling facilities and construction companies. With its robust performance and adaptability, this machine offers reliable support for handling and reprocessing steel materials on-site.
