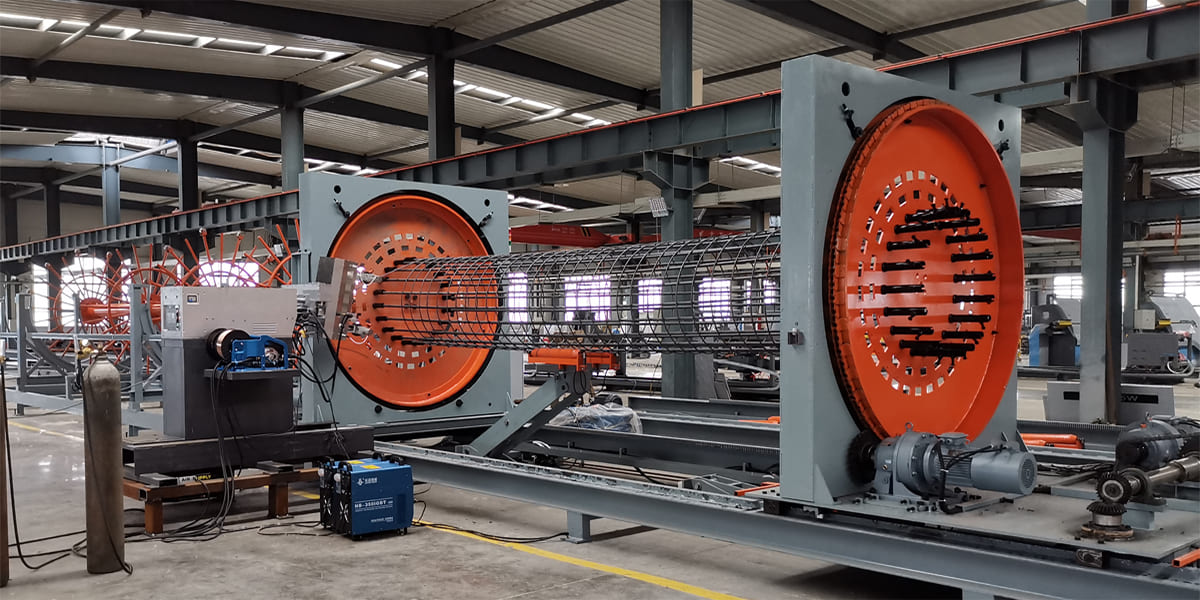

ghm-machinery-rebar-cage-making-machine-1000x600

Popular On the Market Pile Cage Making Machine

Pile Cage Making Machine making steel pile cages, also known as reinforcement cages or rebar cages, serve a pivotal role in reinforcing concrete structures. These cylindrical frameworks are typically composed of steel bars or mesh and are strategically placed within concrete foundations and structures. The primary purpose of pile cages is to provide additional strength and stability to the concrete, particularly in situations where the load-bearing capacity of the structure is critical.

The structural integrity of any construction project is paramount, and pile cages play a vital role in achieving and maintaining this integrity. As concrete is strong in compression but weak in tension, the inclusion of reinforced pile cages addresses this weakness. By incorporating steel reinforcement within the concrete, pile cages enhance the overall tensile strength of the structure, ensuring that it can withstand various loads, environmental conditions, and external forces over time.

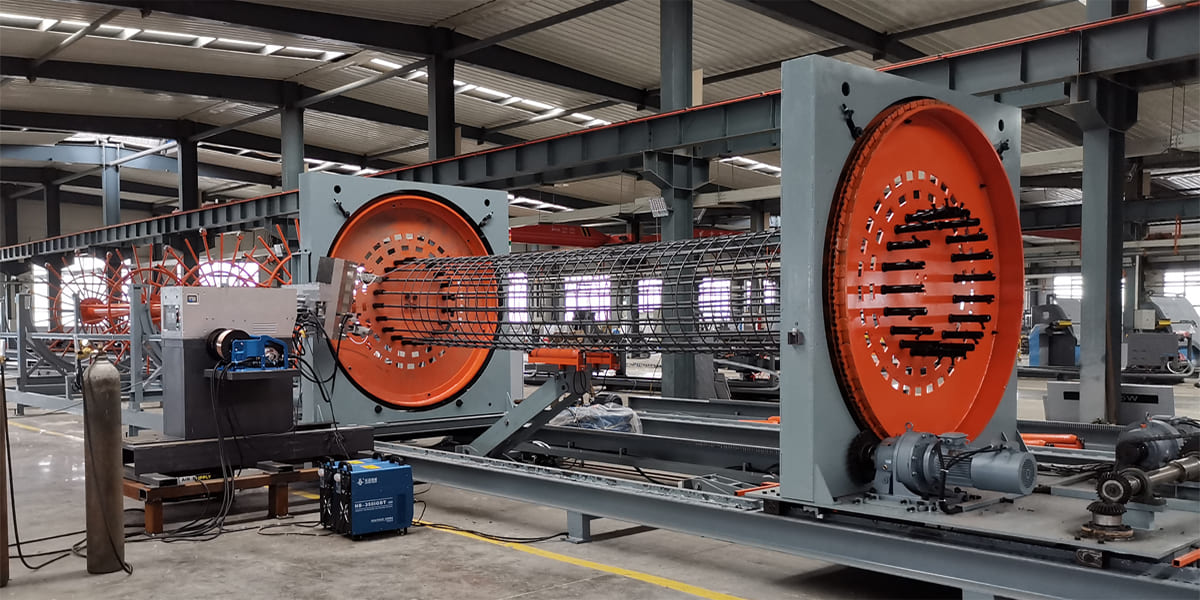

Pile Cage Making Machine
  • Full automatic feeding device to speed up loading and penetration.
  • The automatic wire feeding mechanism can adjust the spacing of Stirrup on line, and the molding quality is high.
  • Positive and negative wheel straightening mechanism with high precision and long life.
  • Automatic cage design to avoid bending due to self weight during welding.
  • Semi/ full automatic welding can be freely selected. The solder joints are accurate, high quality and fast welding speed.
  • The disc is installed with live link design, so that the turntable can be changed quickly.
  • Frequency control gear chain track, high accuracy, truly mechanized.
  • Imported PLC and inverter control, high stability

Steel Pile Cage Winding Machine

Steel Pile Cage Making Machine for Precast Pipe
  • The steel pile cage welding machine greatly improves the efficiency of work
  • The use of reinforced cage welding machines to improve work efficiency can save 1.5%of raw materials than manual operations. When tightening the stirrup, it does not need to be overlap, so the construction cost is greatly reduced.
  • This is because when welding, the main tendons are very uniformly distributed on the weekly circular meter of the machine, so if a large number of reinforced cages are packed, it is particularly convenient, and the lifting time is saved. The use of mechanization for steel cage processing has sufficient quality guarantee in controlling the quality of the product.
  • Use the reinforced cage boiling welding machine for welding. In fact, the spiral tendon in the reinforced cage is the stirrup. The spiral band has the function of ordinary stirrup. For example In the position, the brittleness of the destruction of the component can also be effectively improved.
  • There will be a certain skeleton formation between the spiral tendons and the longitudinal tendons, so that the stiffness of the skeleton can be effectively guaranteed. In addition, the function of the spiral tendon can also restrict the effect of restricting the concrete in the core, so as to improve the bearing capacity of the product.

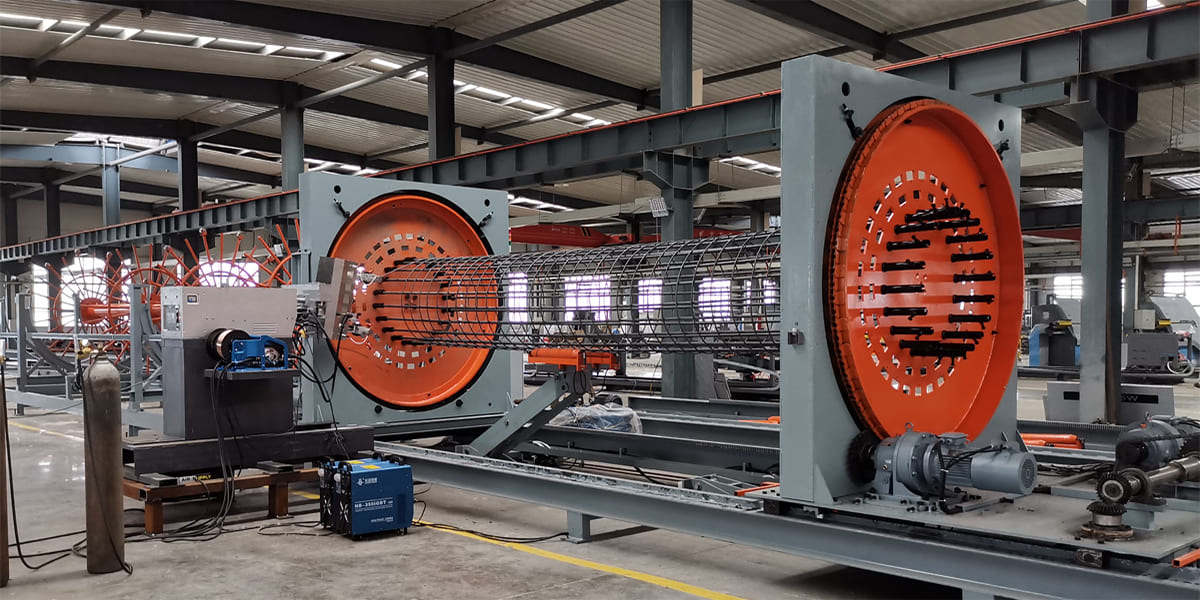

Steel Pile Cage Welding Machine

Steel Pile Cage Winding Machine Poducts Features
  • Using numerical control technology, the winding speed is stable, the spacing is uniform, and the quality is stable.
  • Adopting modular design, each component can be quickly disassembled, moved, and transported conveniently and quickly.
  • The diameter of the rebar cage can be adjusted, and the length can be customized to meet the requirements of various main reinforcement stirrup quantities, models, sizes and lengths.
  • Simple operation, simple training of workers, can control the operation, save labor, a group of 2-3 people can complete the overall operation of the equipment.
  • The power is small, the total function is less than 10KW.
  • The electric control box and the remote control have dual control functions, making the control operation flexible and convenient.
  • The trolley can synchronize two winding ribs, and the host has a memory function, which can adjust and store operating parameters at any time.
  • Stirrups are tightened without overlap, which saves 15% of materials compared with manual work and reduces construction costs.

In conclusion, the popularity of pile cage making machines is a testament to the construction industry’s commitment to innovation and efficiency. As these machines continue to evolve, construction professionals are empowered to create stronger, safer, and more resilient structures, laying the foundation for a future where technology and construction seamlessly converge.
